U-boat Types

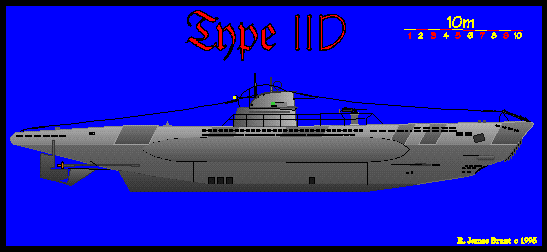

Type IID

16 boats commissioned

Construction history of type IID

U-boats ShipyardWerk #Built during
U-137 - U-15216 Deutsche Werke AG, Kiel266 - 2811939 - 1941

All type IID U-boats

Below you can see the 16 commissioned U-boats of this type.

U-137, U-138, U-139, U-140, U-141, U-142, U-143, U-144, U-145, U-146, U-147,
U-148, U-149, U-150, U-151, and U-152.


Technical information for type IID


Displacement:
(tons)
314 (sf)
364 (sm)
460 (total)
Length: (m) 43,97 oa
29,80 ph
Beam: (m) 4,92 oa
4,00 ph
Draught: (draft)3,93 m
Height:8,40 m
Power: (hp)700 (sf)
410 (sm)
Speed:
(knots)
12,7 (sf)
7,4 (sm)
Range:
(miles / knots)
5650/8 (sf)
56/4 (sm)
Torpedoes:5
3/0 (bow / stern tubes)
Mines: 12 TMA
Deck gun: No deck gun
Crew: 22-24 men
Max depth: ca. 150 m
(492 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
