U-boat Types

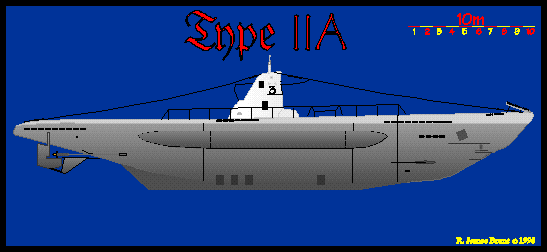

Type IIA

6 boats commissioned

Construction history of type IIA

U-boats ShipyardWerk #Built during
U-1 - U-66 Deutsche Werke AG, Kiel236 - 2411935


U-1 of type IIA. She went missing during April 1940.

The Finnish submarine Vesikko can be considered a prototype of the German IIA class. She was built at the Crichton-Vulcan shipyard in Turku, Finland under a German order and launched in 1933. The Finnish government reserved the right to purchase the boat and did so in January 1936. Vesikko was the only Finnish submarine to survive the post-war peace agreement forbidding Finland to own submarines. The boat was converted into a military museum in 1959 and can be found at the island of Suomenlinna, Finland.

All type IIA U-boats

Below you can see the 6 commissioned U-boats of this type.

U-1, U-2, U-3, U-4, U-5, and U-6.


Technical information for type IIA


Displacement:
(tons)
254 (sf)
303 (sm)
381 (total)
Length: (m) 40,90 oa
27,80 ph
Beam: (m) 4,08 oa
4,00 ph
Draught: (draft)3,83 m
Height:8,60 m
Power: (hp)700 (sf)
360 (sm)
Speed:
(knots)
13,0 (sf)
6,9 (sm)
Range:
(miles / knots)
1600/8 (sf)
35/4 (sm)
Torpedoes:5
3/0 (bow / stern tubes)
Mines: 12 TMA
Deck gun: No deck gun
Crew: 22-24 men
Max depth: ca. 150 m
(492 feet)
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower.
