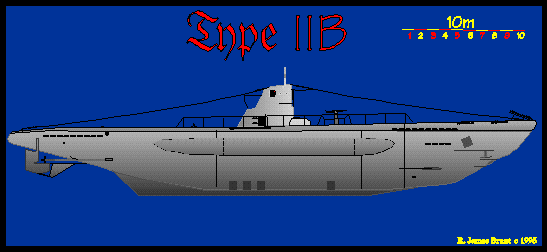

Type IIB
20 boats commissioned
Construction history of type IIB
All type IIB U-boats
Below you can see the 20 commissioned U-boats of this type.
U-7, U-8, U-9, U-10, U-11, U-12, U-13, U-14, U-15, U-16, U-17,
U-18, U-19, U-20, U-21, U-22, U-23, U-24, U-120, and U-121.
Technical information for type IIB
Displacement:
(tons) |
279 (sf)
328 (sm)
414 (total) |
| Length: (m) |
42,70 oa
28,20 ph |
| Beam: (m) |
4,08 oa
4,00 ph |
| Draught: (draft) | 3,90 m |
| Height: | 8,60 m |
| Power: (hp) | 700 (sf)
360 (sm) |
|
Speed:
(knots) | 13,0 (sf)
7,0 (sm) |
Range:
(miles / knots) | 3100/8 (sf)
43/4 (sm) |
| Torpedoes: | 5
3/0 (bow / stern tubes) |
| Mines: |
12 TMA |
| Deck gun: |
No deck gun |
| Crew: |
22-24 men |
| Max depth: |
ca. 150 m
(492 feet) |
|
sm = submerged, sf = surfaced, ph = pressure hull,
oa = overall, hp = horsepower. |
