Type VIIC class

1 ship

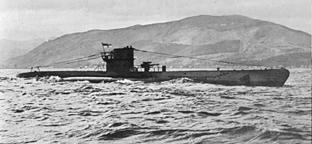

The submarine HMS Graph (P 715) of the Royal Navy.

Technical information

Displacement769 / 871 BRT
Length67.10 m (oa)
Complement44 men
Armament1 3.5" gun
1 37mm AA
2 20mm AA
5 21" torpedo tubes (4 bow, 1 stern)
14 torpedoes
Max speed17 / 7.6 knots (surfaced/submerged)
EnginesDiesel / electric, 2 shafts
Power3200 / 750 HP  (surfaced/submerged)
Notes on classHMS Graph was the former German submarine U-570 captured south of Iceland on 27 August 1941.

All ships of the Type VIIC class

Royal Navy Royal Navy (more on Royal Navy)

HMS Graph (P 715)

1 Submarine of the Type VIIC class.
